DETAILS:

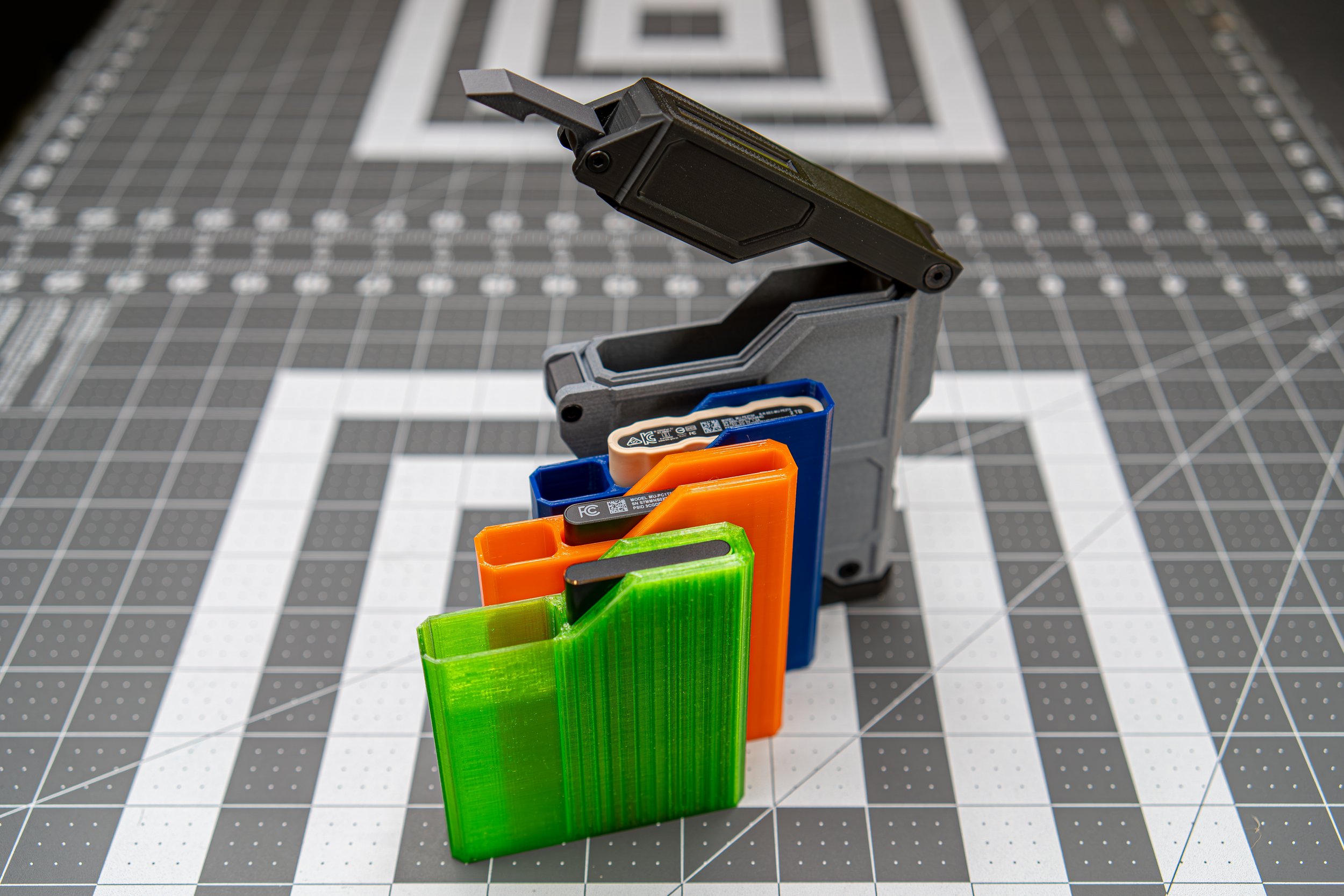

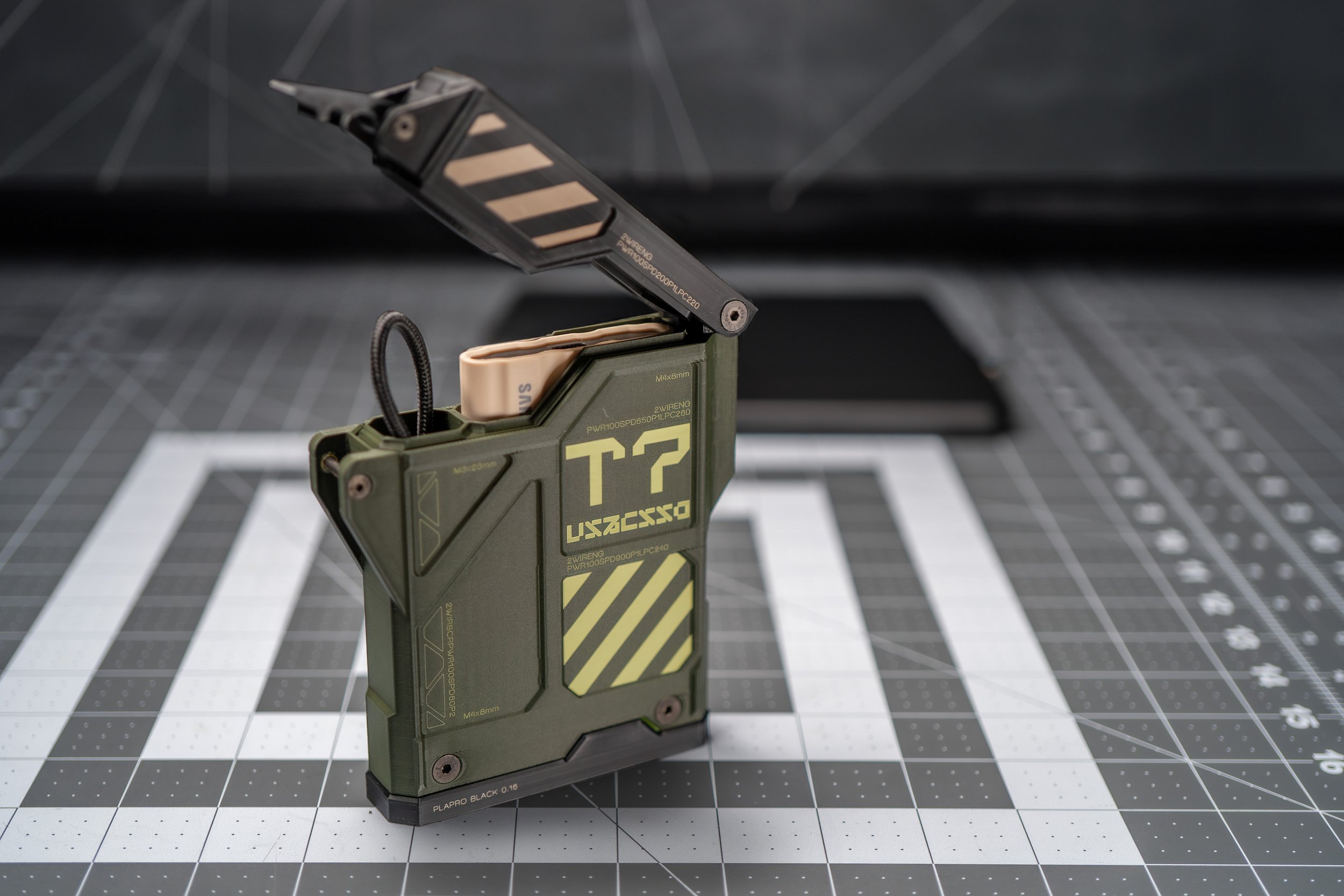

Version E of the case is designed to fit the Samsung T7 Shield SSD hard drive. Version E2 has a slightly larger main cavity that broadens the range of what can fit. Both are included in this file package. There is also a ‘general use’ version (F) that omits the internal divider and maximizes the internal cavity.

Detailed instructions can be found here. With this purchase you’ll receive the 3D printing files plus template files to support laser engraving of the 3D prints. Important things to note:

*This file package has only been tested to work with Bambu Studio and xTool Creative Space
**Files are for personal use only
***There are no physical items included with this purchase

WHAT’S INCLUDED WHEN PURCHASED:

• 3mf files compatible with Bambu Studio and PrusaSlicer

• STL files compatible with most slicer programs available

• SVG files corresponding to the recessed panels of the design

• PDF files corresponding to the recessed panels of the design

HARDWARE REQUIRED:

• Bambu X1 or P1 series printer is recommended

• Any 3D printer with at least a 150 x 150 mm bed

• Laser engraver with equipped with an IR laser rated at least for 2 watts of output

• Heat-set insert press with tips for M3 and M4 inserts

SOFTWARE REQUIRED:

• Bambu Studio 1.9.7 was used for this project but any slicer software that is able to be pause the print and later resume

• xTool Creative Space was used for this project but the SVGs can conceivably be adapted for any laser engraver software

MATERIALS REQUIRED :

• 2x M3 countersunk flat head screws 22 mm (hex socket preferred)

• 4x M4 countersunk flat head screws 8 mm (hex socket preferred)

• 1x M4 countersunk flat head screw 6 mm (hex socket preferred)

• 2x M4 countersunk flat head screws 10 mm (hex socket preferred)

• 2x M3 heat-set insert 4mm deep

• 7x M4 heat-set insert 4mm deep

• 2x M4 Nylon Flat Washers 10 mm OD, 4 mm ID, 1 mm Thickness

• 2x M3 Nylon Flat Washers 6 mm OD, 3 mm ID, 0.5 mm Thickness

• 1 mm solid rubber cord (30 cm length)

• 2 mm hollow rubber cord with 1 mm internal hole/channel (30 cm length)

• 6 mm thick EVA foam sheet

• 2 mm thick EVA foam sheet

• 0.4 in width heavy duty mounting tape

OPTIONAL MATERIALS :

1x 60 x 10 x 5 mm rectangular magnet

2x 10 x 5 mm round disc magnets
